Products

AMFE

Automatic miniature fire extinguishing unit

The AMFE automatically detects fires in control cabinets and electrical devices. The system prevents the spread of fire and further property damage. JOB’s AMFE protects devices and systems in industry-, household- and consumer electronics. (E.g. control cabinets, household appliances, monitors.)

Unsere Löscheinrichtungen AMFE und E-Bulb integrieren wir direkt in Geräten oder Schaltschränken, sodass Brände direkt am Entstehungsort gelöscht werden. Hierdurch schützen wir die Geräte und hinterlassen keine Löschfolgeschäden. Der laufende Betrieb kann somit schnell fortgeführt werden und die Reparaturkosten sinken auf ein Minimum.

Application Areas

Control cabinets

Control cabinets

Media technology

Media technology

Trains

Train

Mining

Mining

Museums/ Collections

Museums/
Collections

Shipping

Shipping

Wind-power

Wind-power

Vending machines

Vending machines

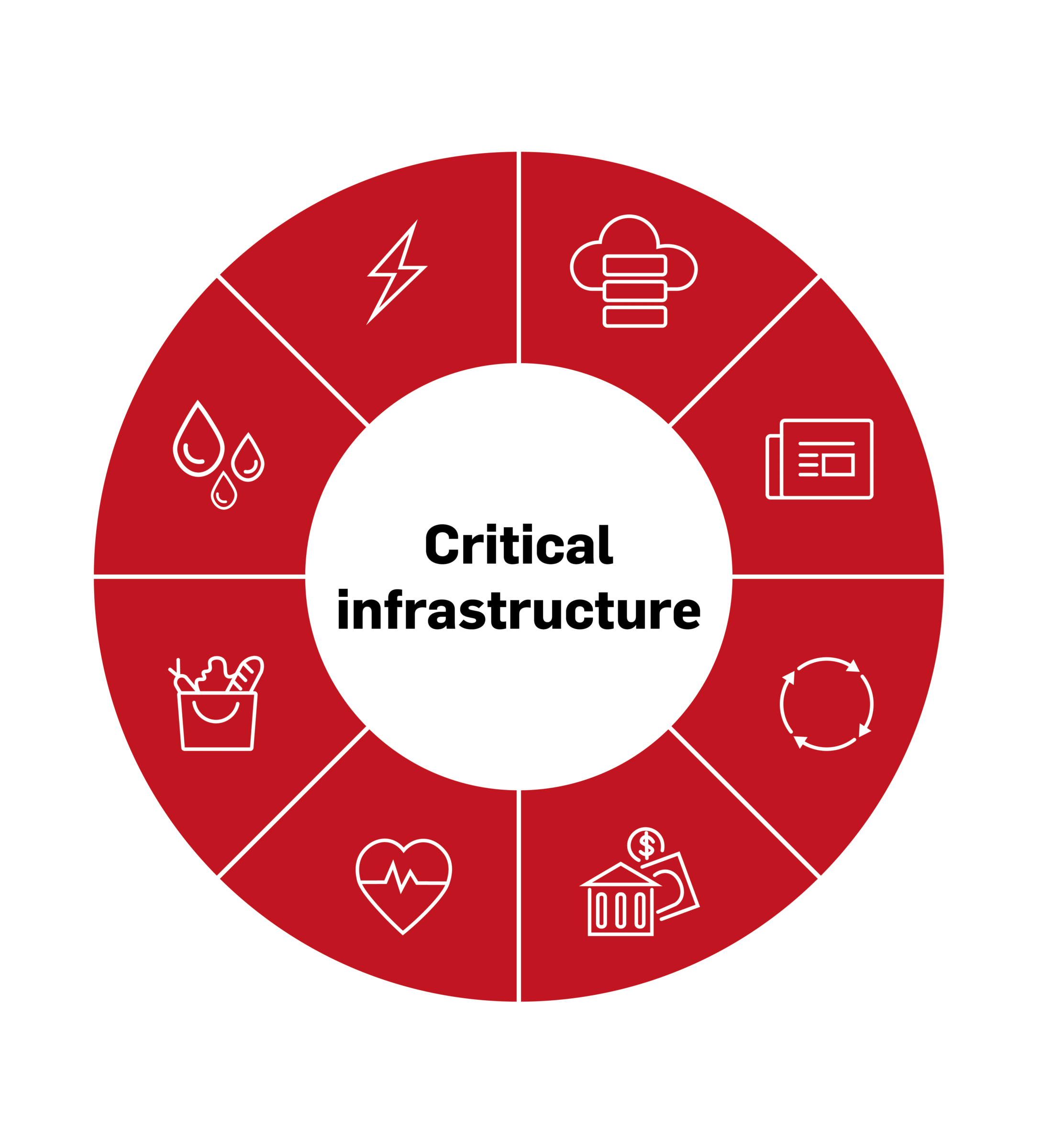

critical infrastructure overview 3

Critical infrastructure law

Device-integrated fire protection as an important building block for greater resilience

The modern world is characterized by increasing complexity and a wide variety of challenges. The protection of critical infrastructures – KRITIS for short – is therefore a top priority.

Die VdS 6024

Brandschutz und Digitalisierung im Einklang

Recognised by:

vds logo de
TUeV Logo
MPA Galerie unten 01
paconsult logo transparent

What variants are there?

AMFE Bild S R EN 1

The AMFE is installed purely passively directly in a box or cabinet to be protected. It is installed in such a way that it reliably detects an increase in temperature in the closed area, triggered by a fire, and triggers the extinguishing process when the selected trigger temperature is exceeded. This allows the non-conductive, non-toxic, and residue-free extinguishing agent to flow out.

Im Falle einer thermischen Aktivierung wird ein externer Signalstrom, der über die S-AMFE läuft, unterbrochen, da die Glasampulle platzt und so eine Meldung der Auslösung stattfindet.
Ein angeschlossenes Relais oder ein Controller erkennt dies und öffnet z.B. die Leistungskontakte.
Infolgedessen wird der Strom ins Gerät hinein abgeschaltet und ein Wiederentzünden verhindert.

The R-AMFE can be triggered using an external activation current. The ampoule inside is specifically overheated and bursts when the activation temperature is reached. In addition to this electrical triggering, the R-AMFE can also trigger purely thermally.

How do you choose the right activation temperature?

Ampullen F AMFE

Depending on the expected temperature inside the housing to be protected, the trigger temperature is chosen. JOB offers four different trigger temperatures as standard. If other triggering temperatures are of interest, please contact us. Individual release temperatures are possible with appropriate purchase quantities. When retrofitting, we recommend a temperature measurement in normal operation (or thermography measurement) and a safety margin of approx. 20 Kelvin to prevent possible early triggering in special temperature conditions (sunlight in summer).

How does AMFE work?

S-AMFE

R-AMFE

Amortisation

shutterstock 1384585232

Fires – triggered by electrical systems or control cabinets – can quickly lead to fire damage like the one in the picture below. 30%

JOB Post AMFE Domino Banner

Insurance against business interruption makes sense, but it is better if fire protection integrated into the device ensures that expensive business interruptions do not occur in the first place.
In the event of a fire, the insurance company pays an agreed amount of money; on the one hand, this usually does not cover the entire amount of the destroyed property, and, on the other hand, the replacement of the destroyed property takes time and money.

Brandentwicklung

Je früher man löscht desto weniger Schäden – geräte-integrierter Brandschutz macht Sinn

Sind die Bedingungen für einen Brand erfüllt, erfolgt die Zündphase. In der Zündphase sind die Temperaturen relativ gering. Die Schwelbrandphase im Anschluss bewirkt eine Aufheizung bis zu einer bestimmten Grenztemperatur. Abhängig vom Brand kann diese Phase lange dauern (z.B. Schwelbrand). Nach Erreichen dieses Grenzbereiches entflammen alle brennbare Stoffe im Raum, man spricht vom Feuerübersprung oder Flash-over. Je früher ein Brand entdeckt und bekämpft wird, desto geringer sind die Brandfolgeschäden zu erwarten. Geräteintegrierter Brandschutz macht Sinn, da elektrische Brände direkt am Brandursprung innerhalb des elektrischen Geräts bekämpft werden.

Ambient conditions wet PCB

Im Gegensatz zu anderen Löschsystemen hinterlässt das AMFE System keine Löschfolgeschäden

Im Gegensatz zu Aerosollöschern oder Schaum- bzw. Wasserbasierenden Löschsystemen zeichnen sich die AMFE Löschsysteme dadurch aus, dass sie keine Löschfolgeschäden hinterlassen. Nach Aktivierung der AMFE verteilt sich das Löschgas im elektrischen Gerät und löscht den Brand. Das Löschmittel ist rückstandsfrei. Sollte es zu einer Betriebsunterbrechung gekommen sein, ist diese deutlich kürzer als bei Löschsystemen die große Kollateralschäden verursacht. Die AMFE macht Sinn.

shutterstock 1438616696

In contrast to other extinguishing systems, the AMFE system does not leave any consequential damage after extinguishing

Risk engineers at property insurers highly value the AMFE mini fire extinguishers because they protect against devastating fires and expensive business interruptions in the event of a fire. The advantages are particularly great when it comes to protecting sensitive areas, important machines, or control cabinets, as well as critical infrastructure. Insurance companies often pass on the added value of risk reduction to their customers in the form of reduced premiums or higher insured sums. Talk to your property insurance company.

Qualitaet Sicherheit 1
Increase quality & safety

Neben den finanziellen Aspekten lohnt der Einsatz von AMFE zur Erhöhung der Sicherheit für Mitarbeiter, Kunden oder anderen Personen, die durch die AMFE geschützt werden. Beim Einbau der AMFE in Serienprodukte wird dadurch auch die Produktsicherheit erhöht.

Einfache Baufreigabe web
Getting building approval more easily

In sensiblen Bereichen wie Einkaufszentren, Messen, Flughäfen oder Bahnhöfen werden Elektrogeräte oft vom „Brandverursacher“ zum „Brandbeteiligten“. Durch den Einbau und Einsatz von Geräten-integriertem Brandschutz, werden Elektrogeräte, wie z.B Digital-Signage und LED-Werbebildschirme sicherer. Dadurch können oft Drucker, Fernseher oder Werbetafeln sogar in Fluchtwegbereichen eine Installationsfreigabe erhalten.

Wartungskosten reduzieren
Reduce maintenance costs

The annual maintenance costs for the AMFE system are low versus other extinguishing systems because maintenance does not have to be carried out by certified specialist personnel.
The costs of standard maintenance contracts can be saved!
AMFE – Simply. More. Safety.

USP web
Integrated fire stop as a unique selling point

As a manufacturer or operator, you can use AMFE to be an important step ahead of your competitors because:

  • Safety is recognised as a product feature by customers and leads to higher customer satisfaction.
  • Device-integrated fire stops can be a unique selling point in your industry and thus secure important market shares.
  • Preventative fire protection as a USP can also help win new orders.
Produktrueckrufkosten web
Reduce product recall costs

Due to high fire risks, every major manufacturer has had to recall devices ranges in recent years. This can lead to a loss of image, which can easily be prevented. Sometimes there is even no need to recall the entire range. A simple service case occurs for individual defective devices.

Kostenreduktion web
Reduce product costs

Different fire protection concepts can be used when designing electronics. Our aim is to increase the safety of electrical devices. By using AMFE, the overall product costs can be reduced, for example by reducing or replacing flame-retardant materials. These materials are also often criticised for being harmful to the environment – quite the opposite of the extinguishing agent integrated in the AMFE.

Advantages at a Glance

Feuerwehrmann vorne
  • Easy to handle
  • Low-maintenance or maintenance-free (remote maintenance)
  • Easy to install (can be retrofitted)
  • Various customised operating and trigger temperatures available
  • No consequential damage due to activation
    Scalable
  • Robust and shockproof
  • Extinguishing agent: FK-5-1-12, other extinguishing agents on request
  • Mechanical release; no electrical power supply required
  • Trigger mechanism: qualified in the automotive and sprinkler industries

Testimonials

Credentials

Choosing the right system

AMFE Icons Schaltschrank 03

Schritt 1

Größe vom Schaltschrank

AMFE Icons Schaltschrank 02

Schritt 2

Temperatur im Schaltschrank

AMFE Icons Schaltschrank 04

Step 3

Maintenance

AMFE Icons Schaltschrank 05

Step 4

Signalling and remote triggering

AMFE Configurator

Gilt bei durchgängigen Schaltschränken oder größeren Volumen! Mehrere AMFEN können gleichzeitig mit unserer R-AMFE ausgelöst werden. Bei weiteren Fragen wenden Sie sich direkt an Ihren Fachpartner.

Technical Data

Schaltschrank Reihe 01
The size of the extinguishing cartridge (size 0 - 5) is selected depending on the size of the housing to be protected.
Geschütztes Volumen [in Litern]* Zylindergröße
46 0
137 1
229 2
459 3
686 4
1.149 5
*Klasse A Feuer nach VdS 2381 (5,8%)
Kartusche in Reihe mit Manometer
FK-5-1-12 as fire extinguishing agent
Physical Dimensions Cylinder Mounting Brackets FK-5-1-12 Content Protected volume (m3)*
Size Size Diameter x Length (mm) Size Diameter x Length (inch) Recommended brackets FK-5-1-12 Volume (ml) Class A fire VdS 2381 (5,8%) Class A fire EN15004-2 (5,3%) Class A fire NFPA 2001 (4,5%)
#0 22x128 7/8 x 5.04 RGSS 22 24 0,046 0,050 0,060
#1 35x154 1 3/8 x 6,06 RGSS 35 72 0,137 0,151 0,179
#2 40x186 1 9/16 x 7,32 RGSS 40 120 0,229 0,251 0,299
#3 51x251 2 x 9,88 2x RSGU 56 241 0,459 0,505 0,600
#4 51x356 2 x 14,02 2x RSGU 56 360 0,686 0,754 0,896
#5 60x380 2 3/8 x 14,96 2x RSGU 63 603 1,149 1,264 1,501

Assembly Support

Icons 03

Möglichst weit oben platzieren

Icons 02

AMFE head directed downwards

Icons Zeichenflaeche 1

Attach AMFE at an angle >25°
